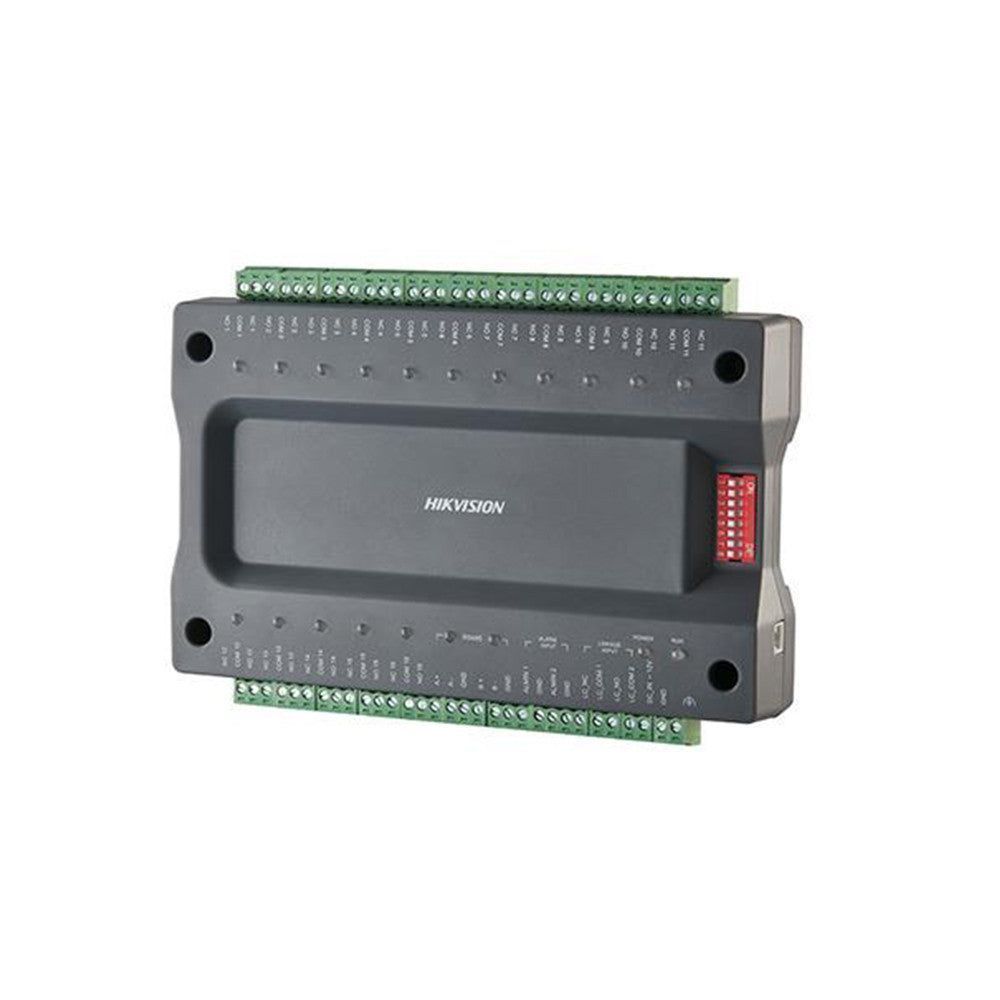

Hikvision DS-K2M0016A Distributed Slave Lift / Elevator Controller – Requires DS

Hikvision DS-K2M0016A Distributed Slave Lift / Elevator Controller – Requires DS-K2210 Master Controller – 2 x RS-485, 2 x Alarm Inputs, 16 x Relay Outputs, 1 x Buzzer, DC12V

Hikvision DS-K2M0016A Distributed Slave Lift / Elevator Controller – Requires DS-K2210 Master Controller – 2 x RS-485, 2 x Alarm Inputs, 16 x Relay Outputs, 1 x Buzzer, DC12V

Features :-

• Model – DS-K2M0016A
• Distributed elevator controller
• Connectable with up to 16 relays to control floor buttons in the elevator
• RS-485 communication with the master elevator controller
• DIP switch settings for device address and relay types
• Up to 8 distributed elevator controllers can be linked to the master elevator controller
• Control the elevator via the relay
• 2 x RS-485 Interface
• 2 x Alarm Input
• 16 x Relay Outputs
• 1 x Buzzer
• Working Temperature: -40°F to 158°F
• Working Humidity: 0% to 90% (No Condensation)
• Power Supply: 12VDC ± 15%
• Guide Rail Installation
• Dimensions: 167 (L) mm * 105 (W) mm * 30 (H) mm
• 32 bit Processor
