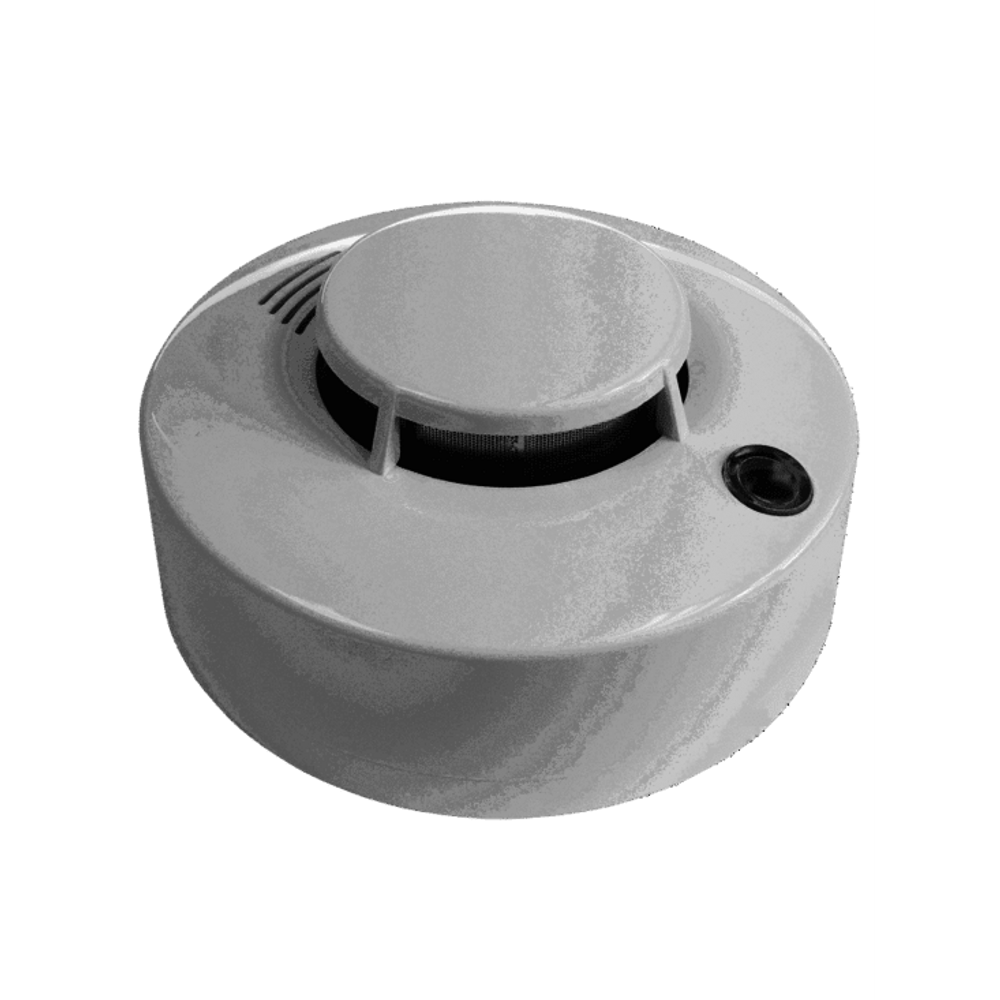

HM-SMOKE - 12V Wired Smoke Detector with Test Button for Alarm Panels
HM-SMOKE - 12V Wired Smoke Detector with Test Button for Alarm Panels
SKU:HM-SMOKE
* All prices exclude GST & Freight, Calculated at checkout - supply only*
product brochure
Specifications:
Detection Type Photoelectric Chamber
Power Source 9-16 Volts DC
Standby Current 25mA
Alarm Current 20mA
Buzzer Output 85db @ 3 meters
Output Relay N/O and N/C Contacts 100mA max
Dimensions Ø100mm x 55mm
Version 2 Now with Power Monitoring
4/5 - Wire
Red = +12VDC
Black = -0VDC
White = Common
Orange = Normally Closed Contact
Yellow = Normally Open Contact
Installation Instruction v2 (with Power Monitoring)
Installation Instruction v1 (without Power Monitoring)
