RWX73M43300B - Risco - 2-Way Wireless Door-Window Magnetic Contact, 433 MHz (+ Input)
RWX73M43300B - Risco - 2-Way Wireless Door-Window Magnetic Contact, 433 MHz (+ Input)
SKU:RWX73M43300B
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Out of stock
Couldn't load pickup availability
Features
Includes
- Communication: Bi-directional
- Built in magnetic contact
- Fully supervised
- Range: up to 300m range (line of sight)
- Selective input termination: NO, NC, DEOL
- Selective input response time adjusted to wired sensors (Fast for shock sensors, Slow for magnetic switches)
- Tamper protection: Back + Cover
- Battery-life saving: events are only sent once every 2.5 minute

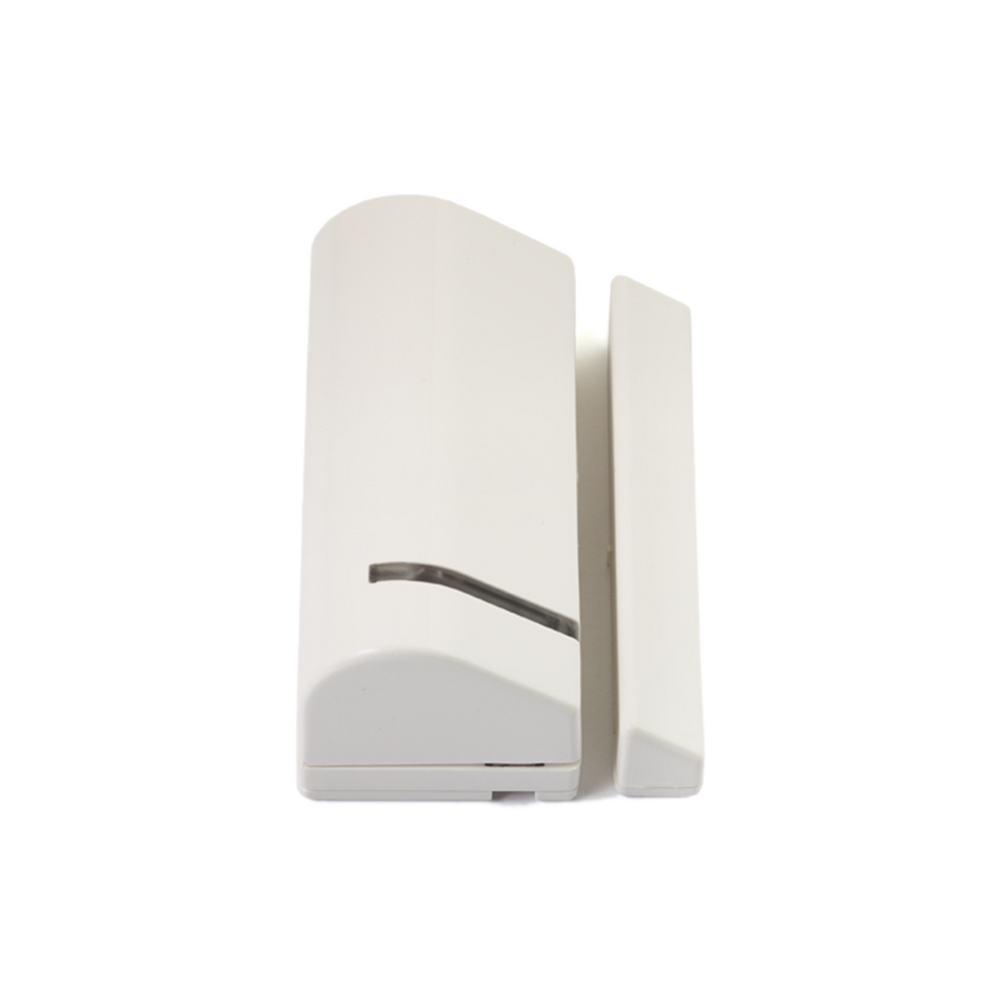

2-Way Wireless Magnetic / Door Contact
RISCOs 2-way Wireless Door/ Window Contact RWX73M is a supervised transmitter ideal for wireless perimeter door/window protection in residential and small commercial applications. The transmitter has a built in magnetic contact and additional zone input that can be connected to wired magnetic contacts or to other wired sensors that can be used for various control or security applications. It operates together with RISCO Groups 2-Way wireless systems and is powered by a standard 3-V lithium battery. Its 2-Way wireless communication provides higher security, reduced wireless congestion, reduced RF communication and remote Control & Diagnostics. The RWX73M is easy to install using a simple bracket to wall installation, and easy to program using RISCOs remote configuration software.
Specs
Features
- Communication: Bi-directional
- Built in magnetic contact
- Fully supervised
- Range: up to 1,000 ft. (300m) range (outdoor)
- Selective input termination: NO, NC, DEOL
- Selective input response time adjusted to wired sensors (Fast for shock sensors, Slow for magnetic switches)
- Tamper protection: Back + Cover
- Battery-life saving: events are only sent once every 2.5 minutes
- Compatible with RISCO systems: Agility 4
- Model name: RWX73M
Technical Specifications
- Battery type: CR123 3V Lithium Battery
- Current Consumption: 11mA standby
- Frequency: 868.65 MHz / 433.92 MHz
- Dead Time (HOLD ON): 2.5 minutes
- Supervision Transmission: 0-255 minutes
- Typical battery Life: 3 years
- Contact Size: 32 x 35 x 72mm (1.3 x 1.4 x 2.8 in.)
- Magnet Size: 16 x 11 x 72mm (0.6 x 0.44 x 2.8 in.)
- RF immunity: According to EN50130-4
- Operating temperature: 0C to 4CÂ
- Storage temperature: -20C to 60CÂ
