SP RELAY-1A - 12V 3A Relay Board
SP RELAY-1A - 12V 3A Relay Board
SKU:SP RELAY-1A
Regular price
$17.50 NZD
Regular price
$24.62 NZD
Sale price
$17.50 NZD
Unit price
/
per
* All prices exclude GST & Freight, Calculated at checkout - supply only*
1000 in stock

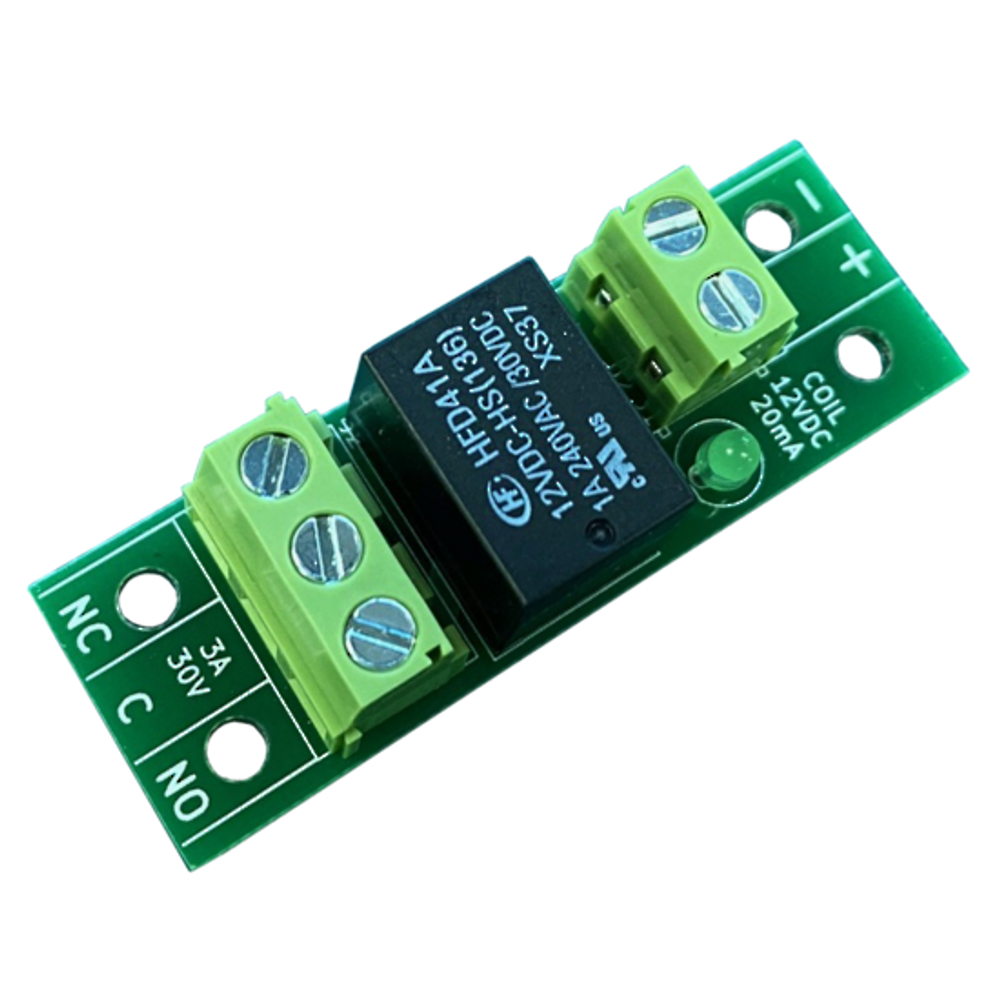

12V 3A Relay Board
Specifications:
Coil - 9 to 14VDC, 20mA
Contacts - SPDT 3Amp, 30VDC Max. (Normally Open and Normally Closed)
Size -17.3mm(w) x 52mm(h) x 16mm(d)
Mounting Holes - 3mm x 4 (Use BSS-9 standoff)
Indicator - Green LED On when coil is energized
Available in easy break off strips of 8
