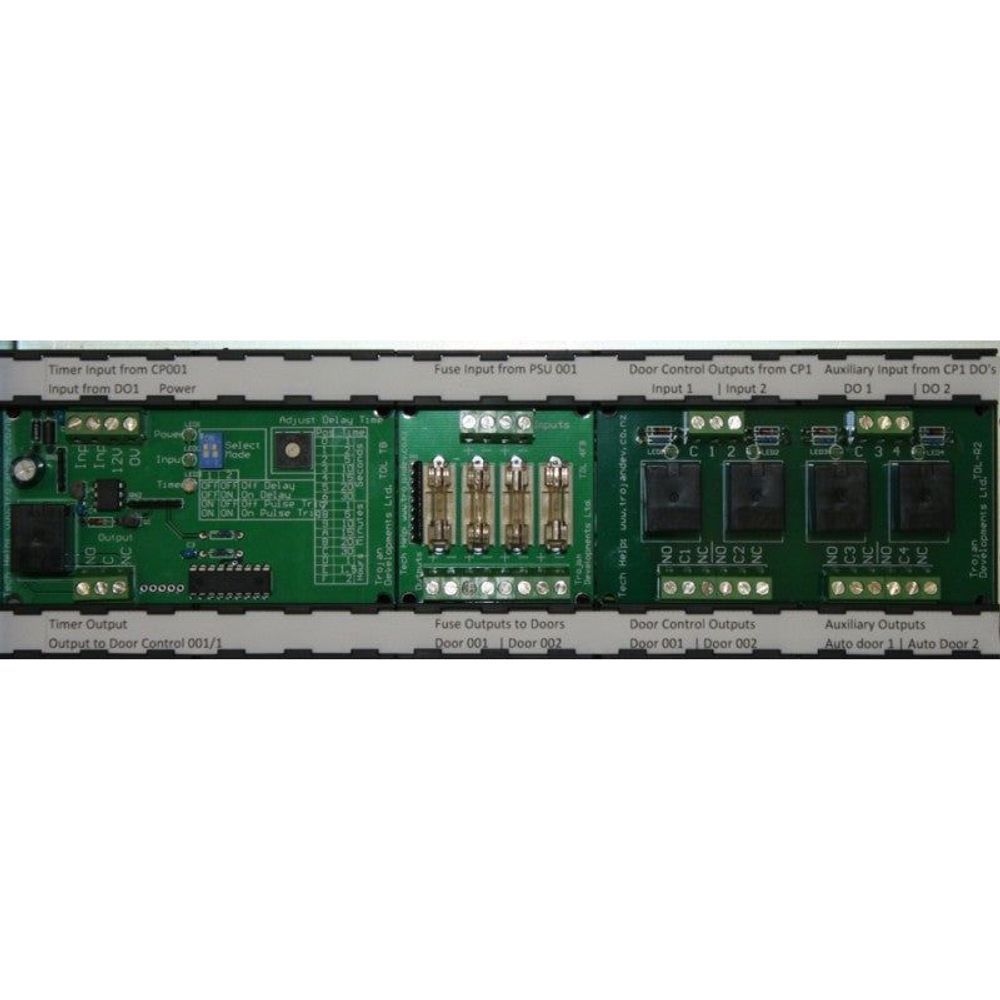

The TDL Mounting Base comes complete with mounting fixings and label holders, which makes installation and labelling of the inputs and outputs easy. The TDL Mounting Base also acts as your cable trunking to conceal all of the input and output cables. Once the label holders are installed there is no sign of the cables or wiring which makes it a very neat installation and from an installation time very quick. For labelling, all you need to do is type up your list of inputs and outputs on an A4 sheet of paper then guillotine them into 12mm strips. These can then be inserted into the label holder which makes for a very tidy installation. You can install standard trunking either side of the TDL Mounting Base to accommodate any extra wiring required and still conceal the cabling.

Features

• The TDL Mounting Base is easy to install and takes care of the mounting of the TDL PCBs, wiring and cable trunking
• The Mounting Bases can be connected together to form one continuous cable trunking system with end caps and label holders
• It can also be split in two if required to fit a particular requirement
• Cable entry can be through the back or sides of the unit
• Mounting Base dimensions: 115mm W x 65mm H x 23mm D

Specifications

• The TDL Mounting Base comes complete with mounting fixings and label holders, which makes installation and labeling of the inputs and outputs easy.
• The TDL Mounting Base also acts as your cable trunking to conceal all of the input and output cables and once the label holders are installed there is no sign of the cables or wiring which makes it a very neat and quick installation
• For labeling, all that you need to do is type up your list of inputs and outputs on an A4 sheet of paper then guillotine them into 12mm strips. These can then be inserted into the label holder which makes for a vary tidy installation.

Specs

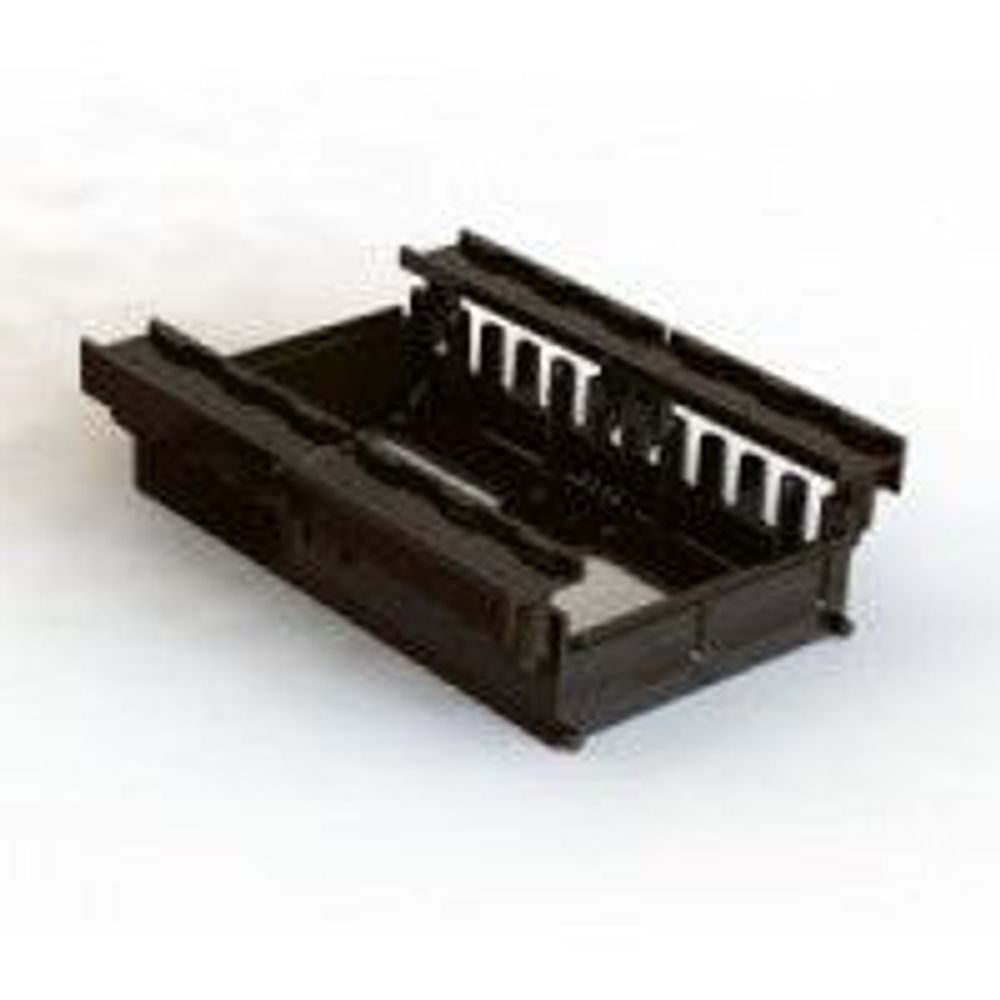

TDL-MB PCB Mounting Base

The TDL Mounting Base is easy to install and takes care of the mounting of the TDL PCB’s, wiring and cable trunking

Specifications

• The TDL Mounting Base is easy to install and takes care of the mounting of the TDL PCB’s, wiring and cable tranking.
• The Mounting Bases can be connected together to form one continuous cable way and mounting system with end caps and label holders
• This also saves space within the equipment cabinet as the cables run behind the PCB’s
• It can also be split in two if required to fit a particular requirement
• Cable entry can be through the back or sides of the unit
• You can install standard trunking either side of the TDL Mounting Base to accommodate any extra wiring required and still conceal the cabling.
  Mounting Base dimensions: 115mm W x 65mm H x 23mm D
