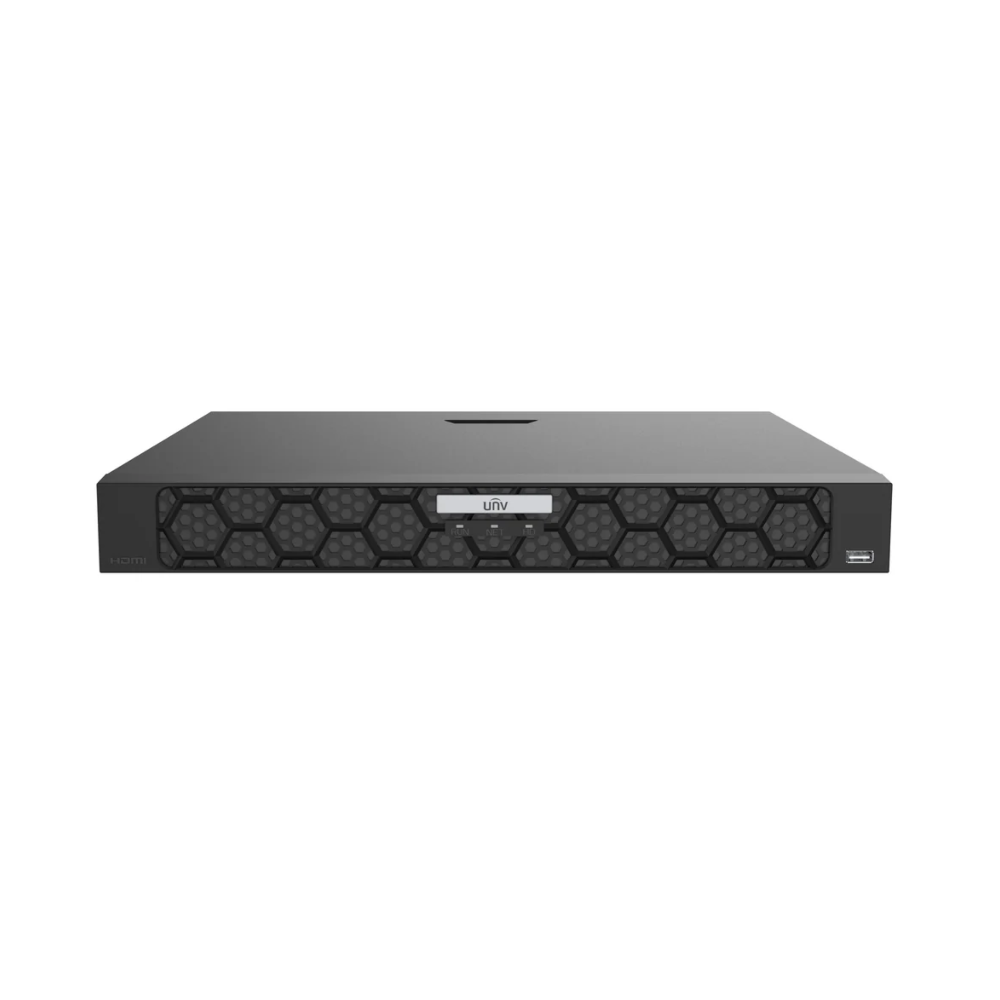

Uniview NVR502-16B-P16 Prime-series 1U 4K 16-Channel 16x PoE Network Video Recor

Uniview NVR502-16B-P16 Prime-series 1U 4K 16-Channel 16x PoE Network Video Recorder – NVR – 2x SATA HDD Slots

Uniview NVR502-16B-P16 Prime-series 1U 4K 16-Channel 16x PoE Network Video Recorder – NVR – 2x SATA HDD Slots

Features :-

• Support Ultra 265 / H.265 / H.264 video formats
• 16-channel input
• Plug & Play with 16 independent PoE network interfaces
• Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
• Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840×2160) resolution
• VGA and HDMI independent output
• Up to 16MP resolution recording
• 2 SATA HDD, up to 10TB for each HDD
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Hardware characteristics :-
  • • • 1 x VGA port (max. 1080P resolution)
      • 1 x HDMI port (max. 4K resolution) – Can be configured to display different sets of cameras as VGA port on HDMI2
      • 2 x 3.5? SATA HDD ports (max. 10TB HDD per port)
      • 1 x RS485 port
      • 2 x USB ports (one front, one rear)
      • 16 x PoE ports (10/100Mbps) (Max. 240w PoE output across all PoE ports)
      • 1 x LAN port (10/100/1000Mbps)
      • 8 x Alarm input ports
      • 2 x Alarm output ports
      • 1 x Audio RCA input port
      • 1 x Audio RCA output port
