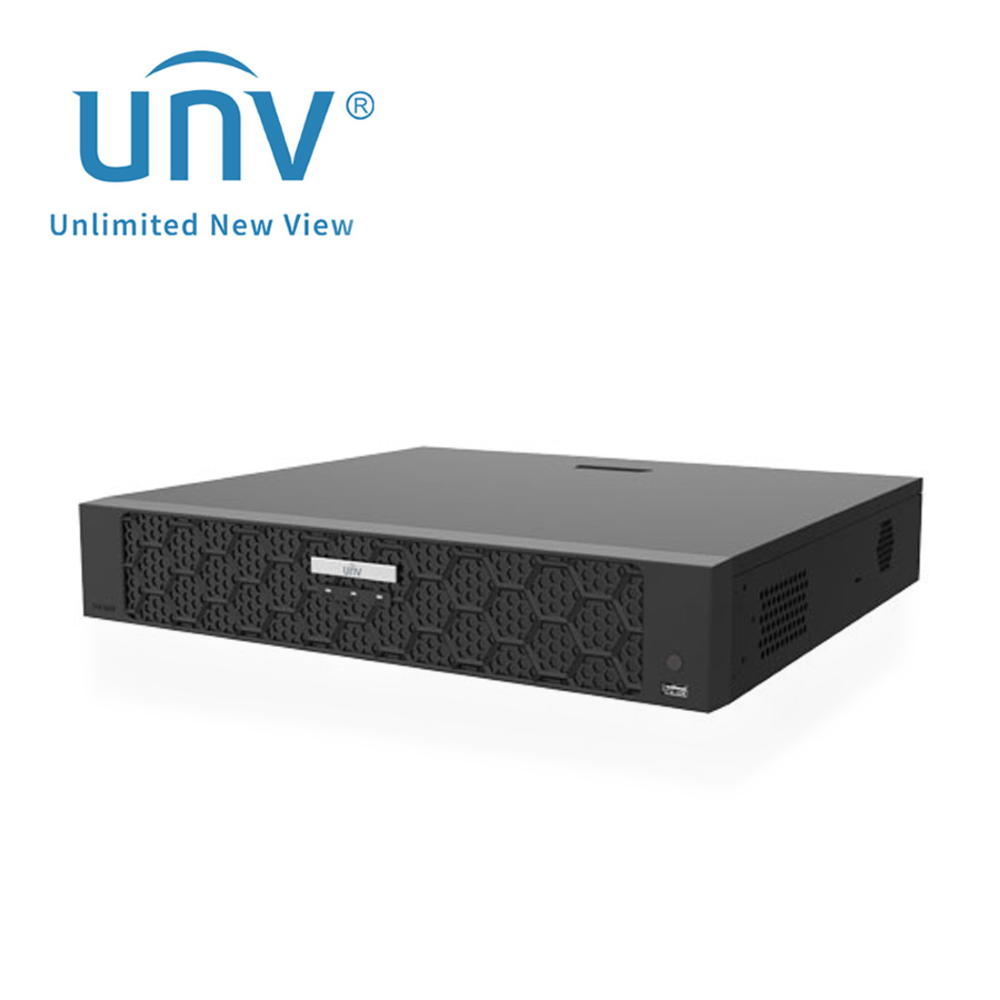

Uniview NVR504-32B-P16 Prime series H265 4K 1.5U Rackmount 32-Channel NVR – Network Video Recorder – with 16x PoE Ports Onboard

Uniview NVR504-32B-P16 Prime series H265 4K 1.5U Rackmount 32-Channel NVR – Network Video Recorder – with 16x PoE Ports Onboard

Features :-

• Support Ultra H.265 / H.265 / H.264 video formats
• 32-channel IPC support
• Plug & Play with 16 independent PoE network interfaces
• Supports mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
• Support 1-ch HDMI, 1-ch VGA; HDMI up to 4K (3840 x 2160) resolution
• HDMI and VGA independent outputs provided
• Up to 16MP resolution recording
• 4 SATA HDDs, Up to 10TB for each HDD
• Various fisheye dewarping modes for live view and playback for both web interface and GUI
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Hardware characteristics :-
  • • • 1 x VGA ports (max. 1080P resolution)
      • 1 x HDMI ports (max. 4K resolution) – Can be configured to display different sets of cameras as VGA port on HDMI1
      • 4 x 3.5? SATA HDD ports (max. 10TB HDD per port)
      • 1 x RS485 port
      • 2 x USB ports (one front, one rear)
      • 16 x PoE ports (10/100Mbps) (Max. 150w PoE output across all PoE ports)
      • 1 x LAN port (10/100/1000Mbps)
      • 16 x Alarm input ports
      • 4 x Alarm output ports
      • 1 x Audio RCA input port
      • 1 x Audio RCA output port
