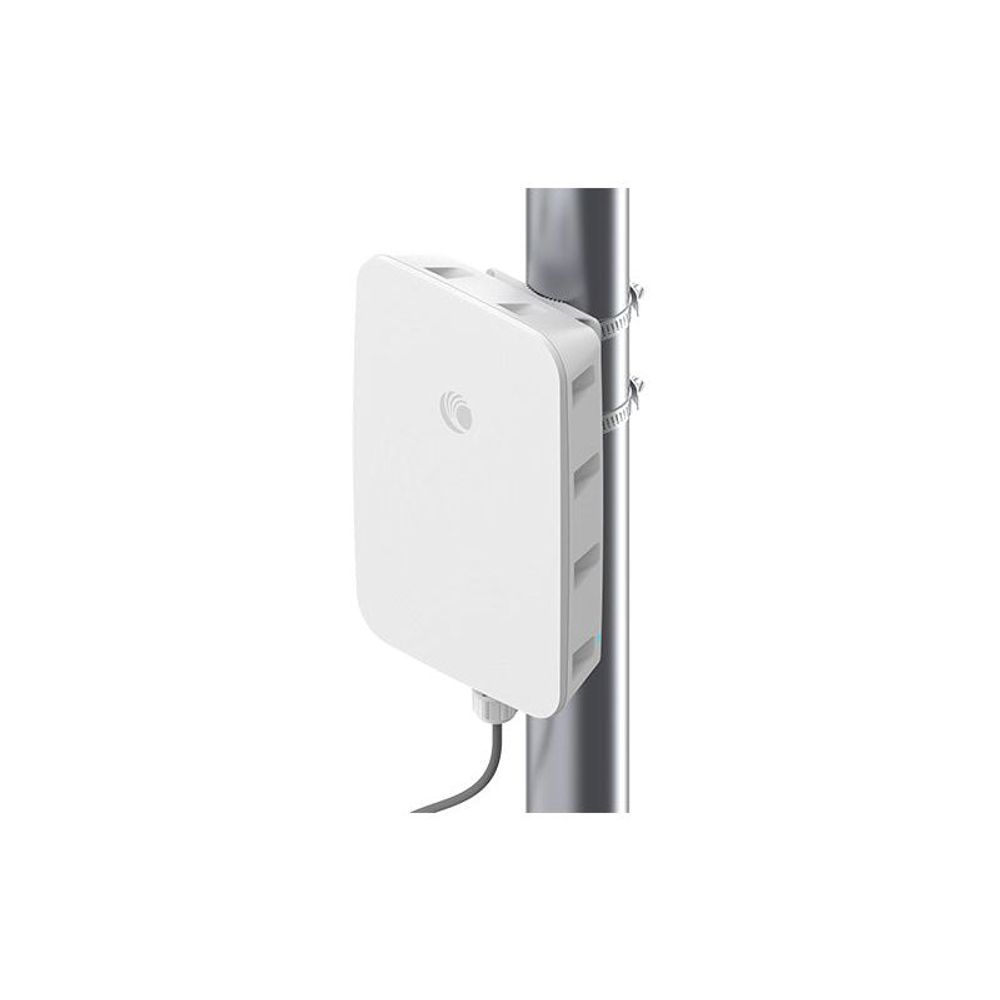

XV2-23T - Cambium XV2-23T Outdoor Dual Radio WiFi 6 Omni Access Point

XV2-23T - Cambium XV2-23T Outdoor Dual Radio WiFi 6 Omni Access Point

XV2-23T

$949.00 NZD
$949.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*
Cambium XV2-23T (XV2-23T0A00-RW) Outdoor Dual Radio WiFi 6 Omni Access Point. The XV2-23T outdoor 2×2 Wi-Fi 6 AP with long range internal antennas. Ideal for hospitality, education, municipal, transportation and logistics applications.

Value tier Wi-Fi for any market
The Cambium Networks XV2-23T Wi-Fi 6 Outdoor access point delivers a high performance to price ratio attractive to any market. The XV2-23T can be onboarded and managed by your choice of Cambium management systems - cnMaestro X or cnMaestro Essentials (either cloud-based or on-premises), or the Swift mobile app. Choose the management type you need and change it at any time. Unlike other value-tier access points, the XV2-23T is never locked into just one management selection.

Designed for fast installation
The XV2-23T offers multiple installation methods included in the same shipping box. Mount the AP to a pole using the included clamps, or to a flat surface using the integrated bracket. The XV2-23T is a compact size and high performance outdoor Wi-Fi 6 access point.
Features
  • Dual Radio Wi-Fi 6
  • 5 GHz (2x2), 2.4 GHz (2x2)
  • One 1 GbE uplink
  • Outdoor rated IP67 enclosure
  • Managed by cnMaestro™ or Swift
Details
Product Code XV2-23T0A00-RW
5 GHz Radio 802.11 a/n/ac/ax, 2x2
2.4 GHz Radio 802.11 b/g/n/ax, 2x2
SSID Security WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open
Max PHY Rate 5 GHz radio 2,402 Mbps, 2.4 GHz radio 573.5Mbps
Ports 1 x IEEE 100/1000 Mbps Ethernet
Antenna 5 GHz 10 dBi, Omni; 2.4 GHz 7 dBi, Omni
Max EIRP 5 GHz 36 dBm, 2.4 GHz 34 dBm (EIRP may be limited by country regulations)
LTE Filter Band 38, 40
Power Consumption Typical 11W, 802.3af powered device
Dimensions 300 mm x 200 mm x 84 mm
Weight 1,220 g
Security Kensington lock slot
LEDs Multi-color status LEDs
Ambient Operation Temperature -40ºC to 65ºC
Storage Temperature -40ºC to 70ºC
Humidity 95% RH non-condensing
MTBF 5,077,102 hours @ 25ºC, 1,224,983 hours @ 65ºC
Mount Options Pole or wall mounting
Pole mount diameter MIN 30 mm / MAX 75 mm
Details
Power Supply Sold Separately
Mounting Hardware Pole / wall Mount Included





Specifications





Details
Product Code XV2-23T0A00-RW
5 GHz Radio 802.11 a/n/ac/ax, 2x2
2.4 GHz Radio 802.11 b/g/n/ax, 2x2
SSID Security WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open
Max PHY Rate 5 GHz radio 2,402 Mbps, 2.4 GHz radio 573.5Mbps
Ports 1 x IEEE 100/1000 Mbps Ethernet
Antenna 5 GHz 10 dBi, Omni; 2.4 GHz 7 dBi, Omni
Max EIRP 5 GHz 36 dBm, 2.4 GHz 34 dBm (EIRP may be limited by country regulations)
LTE Filter Band 38, 40
Power Consumption Typical 11W, 802.3af powered device
Dimensions 300 mm x 200 mm x 84 mm
Weight 1,220 g
Security Kensington lock slot
LEDs Multi-color status LEDs
Ambient Operation Temperature -40ºC to 65ºC
Storage Temperature -40ºC to 70ºC
Humidity 95% RH non-condensing
MTBF 5,077,102 hours @ 25ºC, 1,224,983 hours @ 65ºC
Mount Options Pole or wall mounting
Pole mount diameter MIN 30 mm / MAX 75 mm
