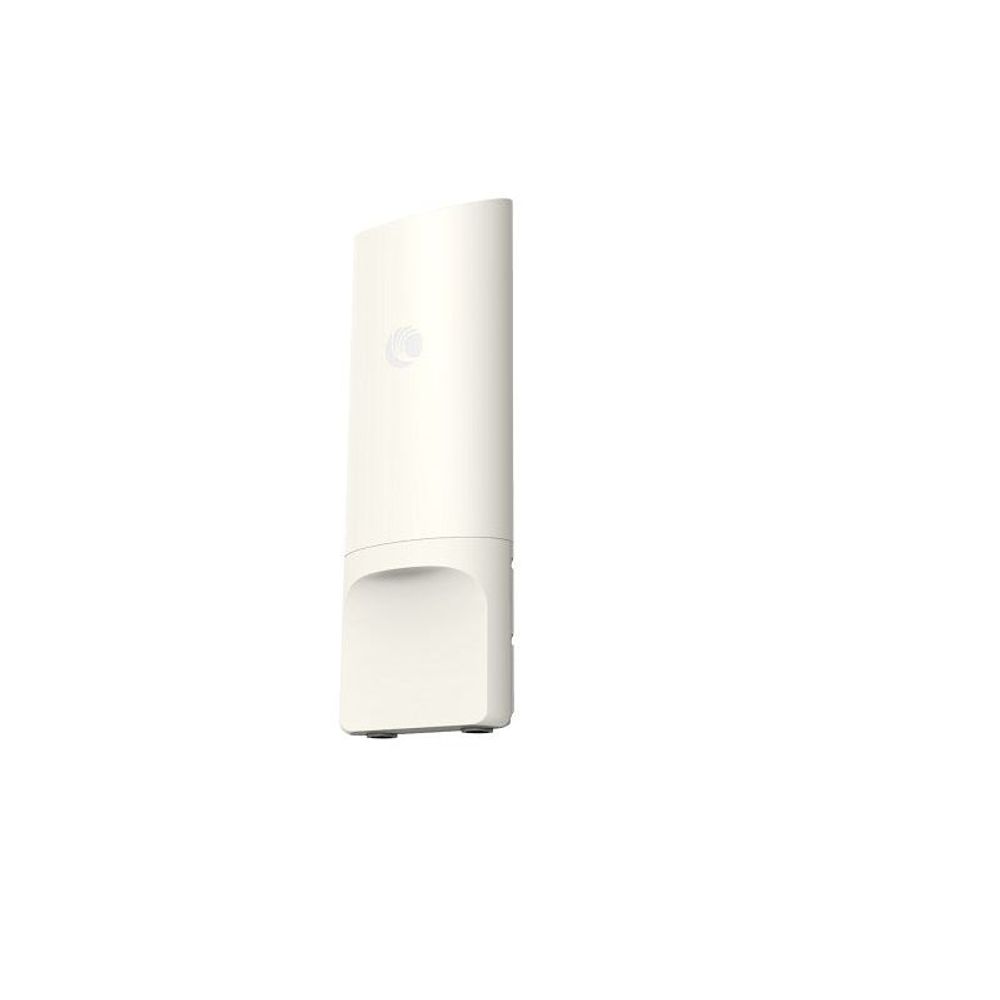

XV2-2T0 - Cambium XV2-2T0 Outdoor Dual Radio 2x2 Wi-Fi 6 Omni Access Point
XV2-2T0 - Cambium XV2-2T0 Outdoor Dual Radio 2x2 Wi-Fi 6 Omni Access Point
SKU:XV2-2T0
Regular price
$1,238.00 NZD
Regular price
Sale price
$1,238.00 NZD
Unit price
/
per
* All prices exclude GST & Freight, Calculated at checkout - supply only*
Cambium XV2-2T0 Outdoor Dual Radio Wi-Fi 6 AP Omni 2x2, 2.5GbE, 30V/48V out, BLE. ROW.
OUTDOOR WI-FI 6 DESIGNED FOR GREATER RANGE AND SPEED
The XV2-2T0 is a dual radio Wi-Fi 6 access point (AP) designed for outdoor deployments in Wi-Fi hotspots, outdoor enterprise networks, hospitality, and education markets. The XV2 2T features surge suppression up to 4kV and an LTE co-existence filter.
The XV2-2T0 delivers Cambium 30VDC power out, or 48VDC for PoE devices connected to the second gigabit Ethernet port. Ideal for connecting the XV2-2T0 to a Cambium subscriber module (SM), Terragraph CN (connection node), or any IP and Ethernet device such as a security IP camera, or another Wi-Fi access point.
The new IEEE 802.11ax standard delivers higher network speeds and enables more connected devices at higher packet quality. In outdoor deployments, the IEEE 802.11ax standard delivers greater range by boosting the RF frame preamble by 3dB and improved signal quality with increased guard interval vs previous Wi-Fi technology. The XV2-2T0 is fully backward compatible with existing Wi-Fi technology and prepares a network for higher growth and greater density of Wi-Fi connected devices.
OUTDOOR WI-FI 6 DESIGNED FOR GREATER RANGE AND SPEED
The XV2-2T0 is a dual radio Wi-Fi 6 access point (AP) designed for outdoor deployments in Wi-Fi hotspots, outdoor enterprise networks, hospitality, and education markets. The XV2 2T features surge suppression up to 4kV and an LTE co-existence filter.
The XV2-2T0 delivers Cambium 30VDC power out, or 48VDC for PoE devices connected to the second gigabit Ethernet port. Ideal for connecting the XV2-2T0 to a Cambium subscriber module (SM), Terragraph CN (connection node), or any IP and Ethernet device such as a security IP camera, or another Wi-Fi access point.
The new IEEE 802.11ax standard delivers higher network speeds and enables more connected devices at higher packet quality. In outdoor deployments, the IEEE 802.11ax standard delivers greater range by boosting the RF frame preamble by 3dB and improved signal quality with increased guard interval vs previous Wi-Fi technology. The XV2-2T0 is fully backward compatible with existing Wi-Fi technology and prepares a network for higher growth and greater density of Wi-Fi connected devices.
Features
- Compatible with Cambium Networks XMS or cnMaestro management system
- Dual radio 802.11ax
- 2.5 GbE Uplink Ethernet
- 1 GbE with power out
- Outdoor IP67 rated, -40ºC to 65ºC
- 3 Year limited lifetime warranty
Details | |
---|---|
Product Code | XV2-2T0XA00-RW |
5 GHz Radio | 802.11 a/n/ac Wave 2/ax, 2x2 |
2.4 GHz Radio | 802.11 b/g/n/ax, 2x2 |
Bluetooth | BLE 4.1 |
SSID Security | WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open |
Max PHY Rate | 5 GHz radio 1,201 Mbps, 2.4 GHz radio 573.5Mbps |
Ports | 1 x IEEE 100/1000/2500 Mbps, 1 x IEEE 10/100/1000 Mbps Ethernet with SW configurable passive PoE output of 30V or 48V up to 30 Watts |
Antenna | 5 GHz 9.3 dBi, Omni; 2.4 GHz 5.3 dBi, Omni |
Max EIRP | 5 GHz 36 dBm, 2.4 GHz 33 dBm (EIRP may be limited by country regulations) |
LTE Filter | Band 38, 40 |
Power Consumption | 20W max, Up to 50W when powering an auxiliary device |
Dimensions | 582 mm x 200 mm x 80 mm (22.91 in x 7.87 in x 3.15 in) |
Weight | 1,200 g (2.64 lbs) |
Security | Kensington lock slot |
LEDs | Multi-color status LEDs |
Ambient Operation Temperature | -40ºC to 65ºC (-40ºF to 149ºF) |
Storage Temperature | -40ºC to 70ºC (-40ºF to 158ºF) |
Humidity | 95% RH non-condensing |
MTBF | 25ºC = 669,174 hours, 65ºC = 206,739 hours |
Mount Options | Pole or wall mounting |
Pole mount diameter | MIN 30 mm / MAX 75 mm |
Details | |
---|---|
Power Supply | Sold Separately |
Mounting Hardware | Pole / Wall Mount kit included |
Â
Â
Specifications
Â
Â
Cambium XV2-2T0 Outdoor Dual Radio Wi-Fi 6 AP Omni 2x2, 2.5GbE, 30V/48V out, BLE. ROW.
OUTDOOR WI-FI 6 DESIGNED FOR GREATER RANGE AND SPEED
The XV2-2T0 is a dual radio Wi-Fi 6 access point (AP) designed for outdoor deployments in Wi-Fi hotspots, outdoor enterprise networks, hospitality, and education markets. The XV2 2T features surge suppression up to 4kV and an LTE co-existence filter.
The XV2-2T0 delivers Cambium 30VDC power out, or 48VDC for PoE devices connected to the second gigabit Ethernet port. Ideal for connecting the XV2-2T0 to a Cambium subscriber module (SM), Terragraph CN (connection node), or any IP and Ethernet device such as a security IP camera, or another Wi-Fi access point.
The new IEEE 802.11ax standard delivers higher network speeds and enables more connected devices at higher packet quality. In outdoor deployments, the IEEE 802.11ax standard delivers greater range by boosting the RF frame preamble by 3dB and improved signal quality with increased guard interval vs previous Wi-Fi technology. The XV2-2T0 is fully backward compatible with existing Wi-Fi technology and prepares a network for higher growth and greater density of Wi-Fi connected devices.
OUTDOOR WI-FI 6 DESIGNED FOR GREATER RANGE AND SPEED
The XV2-2T0 is a dual radio Wi-Fi 6 access point (AP) designed for outdoor deployments in Wi-Fi hotspots, outdoor enterprise networks, hospitality, and education markets. The XV2 2T features surge suppression up to 4kV and an LTE co-existence filter.
The XV2-2T0 delivers Cambium 30VDC power out, or 48VDC for PoE devices connected to the second gigabit Ethernet port. Ideal for connecting the XV2-2T0 to a Cambium subscriber module (SM), Terragraph CN (connection node), or any IP and Ethernet device such as a security IP camera, or another Wi-Fi access point.
The new IEEE 802.11ax standard delivers higher network speeds and enables more connected devices at higher packet quality. In outdoor deployments, the IEEE 802.11ax standard delivers greater range by boosting the RF frame preamble by 3dB and improved signal quality with increased guard interval vs previous Wi-Fi technology. The XV2-2T0 is fully backward compatible with existing Wi-Fi technology and prepares a network for higher growth and greater density of Wi-Fi connected devices.
Features
- Compatible with Cambium Networks XMS or cnMaestro management system
- Dual radio 802.11ax
- 2.5 GbE Uplink Ethernet
- 1 GbE with power out
- Outdoor IP67 rated, -40ºC to 65ºC
- 3 Year limited lifetime warranty
Details | |
---|---|
Product Code | XV2-2T0XA00-RW |
5 GHz Radio | 802.11 a/n/ac Wave 2/ax, 2x2 |
2.4 GHz Radio | 802.11 b/g/n/ax, 2x2 |
Bluetooth | BLE 4.1 |
SSID Security | WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open |
Max PHY Rate | 5 GHz radio 1,201 Mbps, 2.4 GHz radio 573.5Mbps |
Ports | 1 x IEEE 100/1000/2500 Mbps, 1 x IEEE 10/100/1000 Mbps Ethernet with SW configurable passive PoE output of 30V or 48V up to 30 Watts |
Antenna | 5 GHz 9.3 dBi, Omni; 2.4 GHz 5.3 dBi, Omni |
Max EIRP | 5 GHz 36 dBm, 2.4 GHz 33 dBm (EIRP may be limited by country regulations) |
LTE Filter | Band 38, 40 |
Power Consumption | 20W max, Up to 50W when powering an auxiliary device |
Dimensions | 582 mm x 200 mm x 80 mm (22.91 in x 7.87 in x 3.15 in) |
Weight | 1,200 g (2.64 lbs) |
Security | Kensington lock slot |
LEDs | Multi-color status LEDs |
Ambient Operation Temperature | -40ºC to 65ºC (-40ºF to 149ºF) |
Storage Temperature | -40ºC to 70ºC (-40ºF to 158ºF) |
Humidity | 95% RH non-condensing |
MTBF | 25ºC = 669,174 hours, 65ºC = 206,739 hours |
Mount Options | Pole or wall mounting |
Pole mount diameter | MIN 30 mm / MAX 75 mm |
Details | |
---|---|
Power Supply | Sold Separately |
Mounting Hardware | Pole / Wall Mount kit included |
